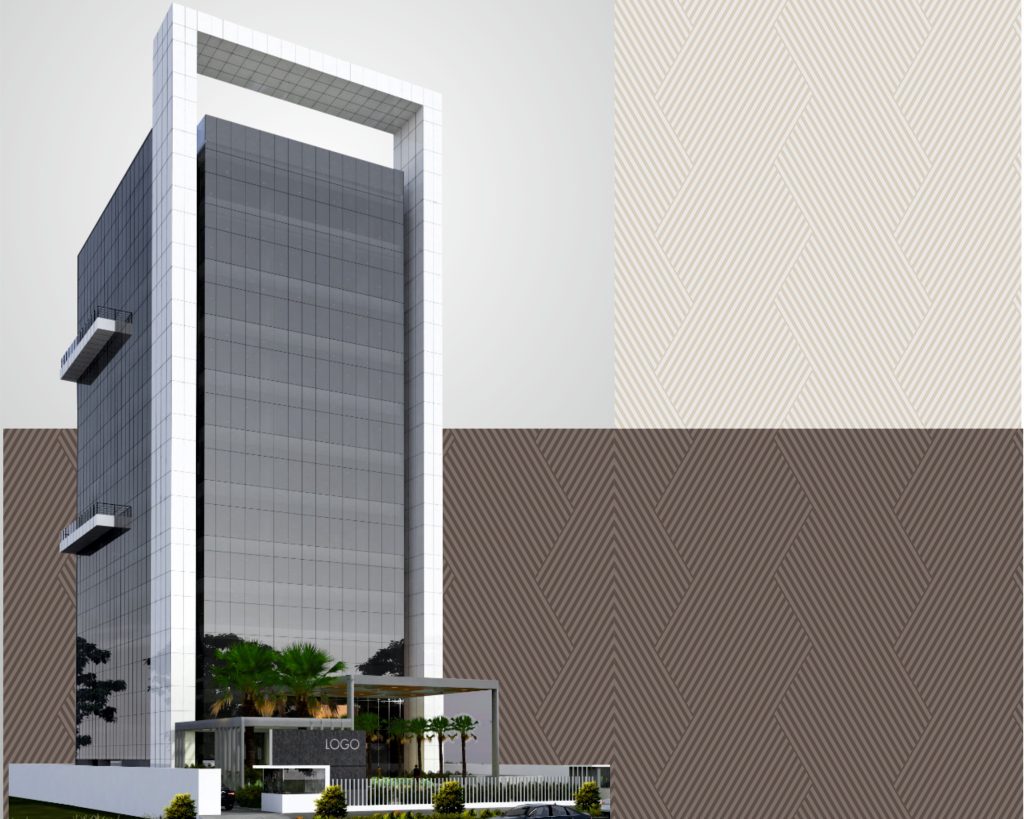

A Grade A Commercial Tower Engineered for Cleaner Air and Higher Performance
- Integrated Air Purification Infrastructure
- 1500+ Air-Cleansing Plants
- Advanced Filtration Systems
- LEED Gold Certified
- 10,220sqm Built Up Area
- 15 Floors
- 100+ Parking
- Sector 142, Noida
In a region challenged by poor AQI & pollution, GRIP Biosphere transforms environmental responsibility into measurable business value
Infrastructure That Thinks Beyond Architecture
GRIP Biosphere is performance-driven commercial infrastructure designed for long-term operational resilience, ESG alignment, and asset appreciation.
Strategically located in Sector 142, Noida, the project integrates intelligent engineering, sustainable systems, and advanced indoor air management to create a workspace that enhances operational efficiency and long-term asset value.
Turning Air Quality Into a Strategic Advantage
Urban pollution is no longer peripheral — it directly impacts workforce health, productivity, and corporate ESG performance.

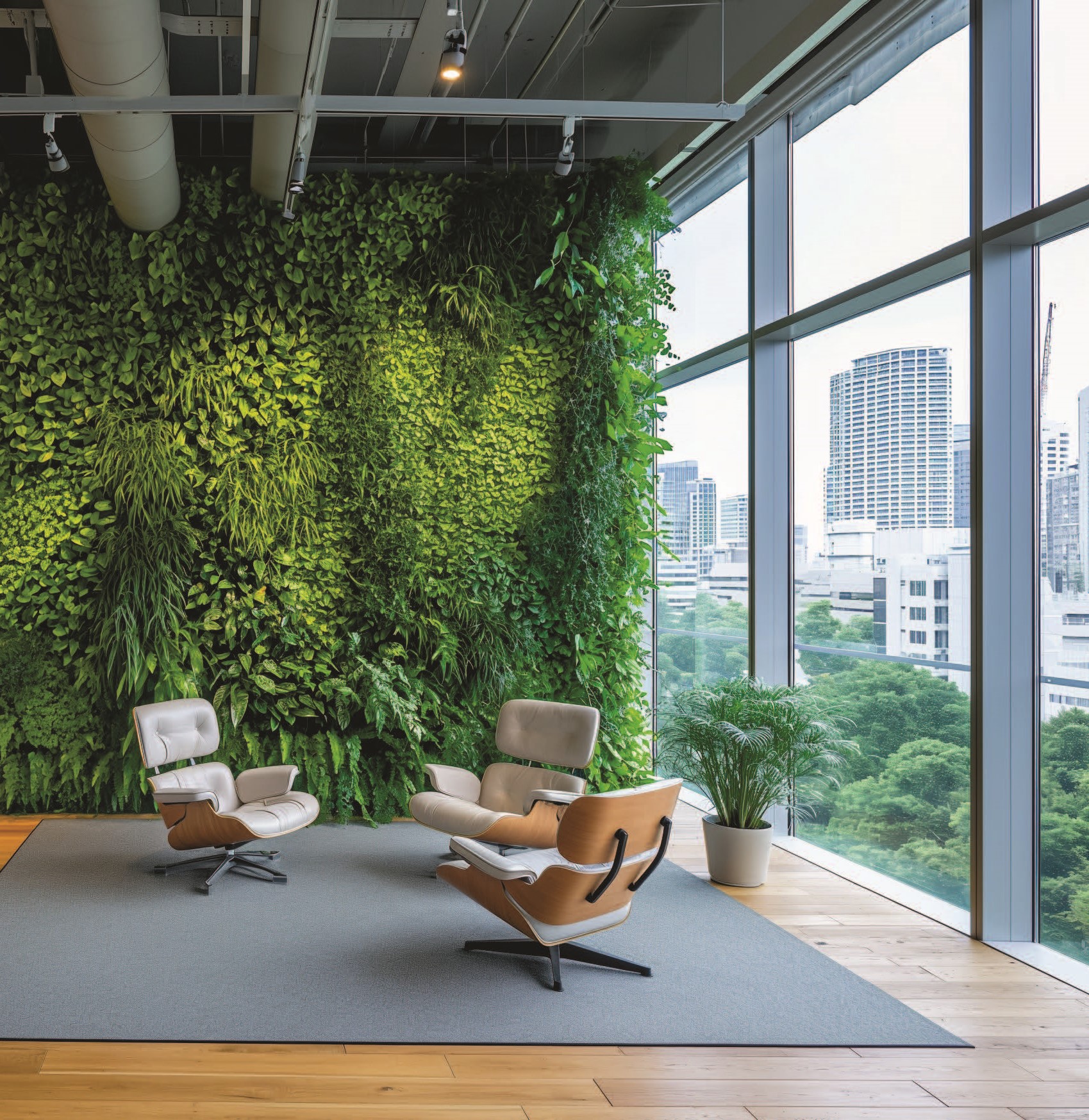

GRIP Biosphere integrates over 1500 strategically placed air-purifying plants along with advanced filtration systems to enhance indoor air quality across the building.
By actively reducing airborne pollutants and improving oxygen circulation, the development creates a healthier, more focused work environment — translating environmental sensitivity into operational strength.
This is not landscaping. It is engineered environmental control.

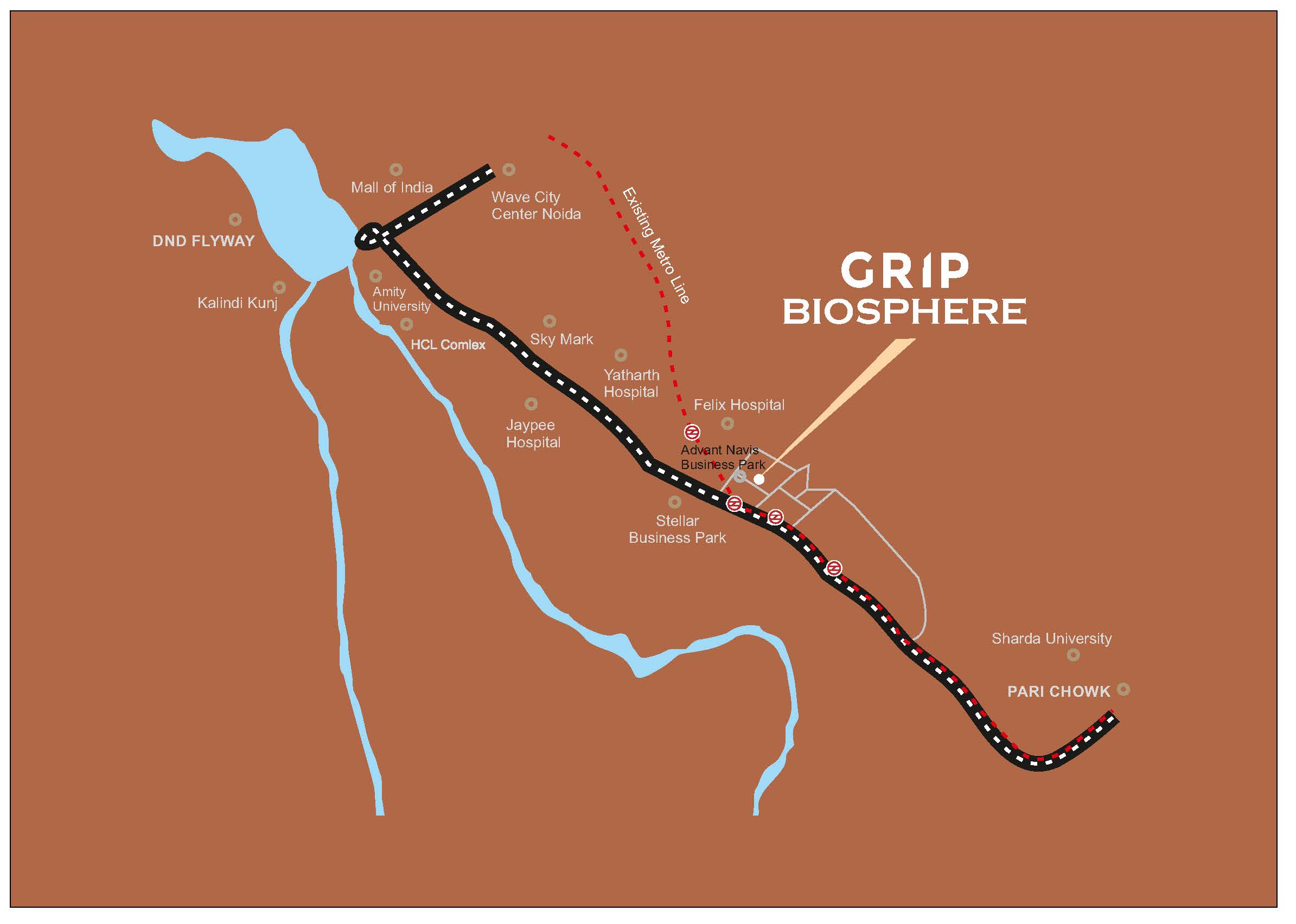

Positioned at the Core of Noida’s Growth Corridor
Access
Direct Noida Expressway Access
Metro
Metro Connectivity within 500m from site
IGI Airport
45 Minutes to IGI Airport
Jewar Airport
Strategic Access to Jewar International Airport
Ecosystem Hub
A place at the heart of it all, where everything is within reach
Built to Global Commercial Standards
LEED Gold Certified Development

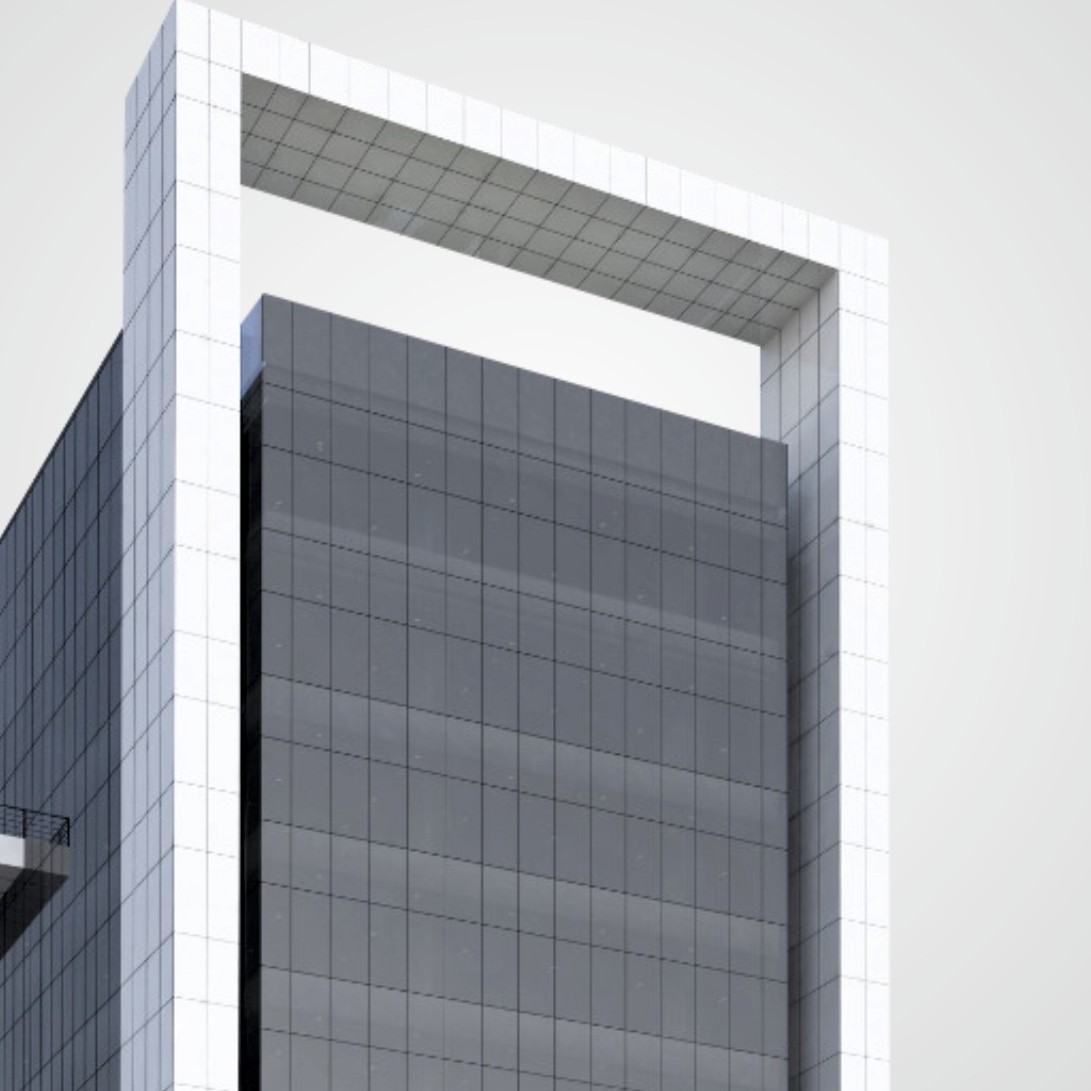

High Performance Façade System
Optimized Energy Performance Index

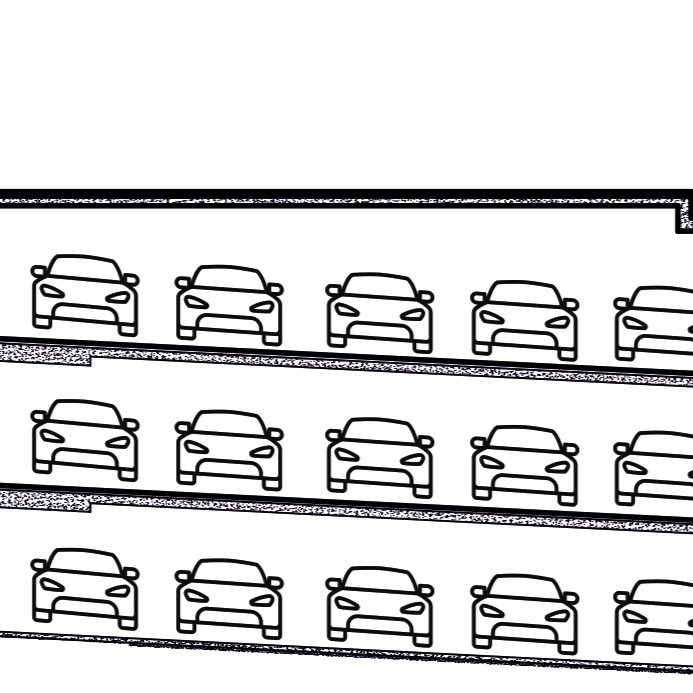

Ramp-Based Multi-Level Parking
EV Charging Infrastructure
Intelligent Building Management System
Multi-Tier Security & Surveillance
Data Center In House
Responsible Infrastructure for Long-Term Value
GRIP Biosphere integrates sustainable design principles that reduce operational costs while supporting corporate ESG compliance.
Energy-efficient façade design
Targeted Low Energy Performance Index
Water recycling systems
Sustainable transit support
Reduced long-term operational expenditure
TECHNICAL EXCELLENCE
Structure
RCC FRAMED EARTHQUAKE RESISTANT STRUCTURE
- Structure Audited & Passed by Aligarh Muslim University
- Designed for Seismic Zone V
- Dead Load 6KN/m2
- Live Load 4KN/m2
- Occupancy 65 sft/PAX
High Performance Facade
- VLT : 2.4%
- Solar Heat Gain : ).21
- U-Value : 1.81W/m2k
- Min : 300 LUX
- 8 feet clear vision panel
Water
- Treated Raw water (ACF+Softener) for Domestic Consumption
- Treated Waste water via STP, UV filteration used for flushing, irrigation, Hydorponics, Thereby saving 13KL/Day
- 2000 LPH RO plant to further treat STP water to be used in cooling Tower, thereby saving 17 KL/Day
- Separate RO to provide for clean drinking water at each floor
- Water saving through low flushing urinals and Wcs
- Low Flow sensor based tap faucets
- 2x 1 Lac Litre UG Fire Tank
- 20 KL UG Raw water Tank
- 20 KL UG Domestic Water Tank
- 18 KL Fire Tank at Terrace
- 20 KL Domestic Tank at Terrace
- 10 KL Flushing Tank at Terrace
- 15 KL Soft water Tank at Terrace (cooling Tower)
Air
3 Tier Air cleaning technology on the service floor via
- 1500 hydroponic indoor plants to clean air of all toxins & pollutants and oxygenate the air
- TFA
- Merv 13 Filters in AHU
- CO2 sensors on each floor to control the fresh air to each floor
HVAC System
CLIMATE CONTROL
50-55% Relative Humidity
24°C dry-bulb temperature +/-1°C in office spaces
CHILLER
Chilled Water supply to Office
AHUs at 6 deg C
1×160 TR Capacity of Water Cooled Chillers with VFD (Make – Carrier)
1×160 TR Capacity of Water Cooled Chillers without VFD (Make – Carrier)
Undiversified Load on chiller based on Building metric is 210Tr
Chiller performance of 0.39 KW/Tr NPLV
COOLING TOWER
2 Nos Counterflow induced Draught Type (Make – BELL)
CTI certified with IE3 motors and VFD
Daily consumption of 17KLD fed through STP & RO treated water
TDS controlling through sensors
PUMPS
2 nos pumps each Primary, Condensor, Secondary (with VFD)
Make – Grundfoss
All pumps are fitted with IE3 motors
HOT WATER GENERATOR
150 KW for Heating During Winters
BTU METERING
For HVAC load billing for tenants
Electricals
Package Substation
- Installed Capacity 1000 KVA Transformer & built in LT Panel
Power Requirement
- 715 KVA
EV Power Requirement
- 35 KVA
Power Backup
- 2×380 KVA DG Sets
Distribution
- Dual Redundant 2 x 800 A Godrej Rising Main for Main Supply with Auto Failover
- Independent 1 x 630 A Godrej Rising Main for Data Centre with Auto Failover
- Independent 1 x 200 A Godrej Rising Main for EV Charging
- Tenant distribution tap through Auto Changeover Switch with
individual smart metering (Schneider)
Earthing
- Separate earthing for UPS & Main power
- 1 Nos Earth Mat of 14 Nos 25mm Copper bonded electrode for Main Power
- 1 Nos Earth Mat of 12 Nos 25mm Copper bonded electrode for UPS Power
- Each Electrode of Earth Mat has a Resistance of 0.34 ohm
- Each Tenant is provided with a 25×5 Copper bus connected to the Earth Mat for Multiple Power Earthing
- Each Tenant is provided with a 25×5 Copper bus connected to the Earth Mat for Multiple UPS neutral Earthing
- Separate Earthing with Dual redundancy for DG & Transformer Neutral and Body with 0.74 ohm resistance
Lightening Arrestor
- Designed for Protection angle and rolling sphere as per IEC 62305-3 / NBC 2016
- Each Earthing has Dual redundancy with 17.2mm Copper bonded electrode having Resistance of 0.7 ohm
Emergency Lighting
- All common areas like Staircases, lift Lobby, basement and basement Lobby.
- All common Area lighting are operated through motion sensor
UPS Supply
- For all common area lighting, surveillance, access control,
BMS, boom barrier through 75KVA (20 mins)
Fire Saftey
- Hydrant & Automatic Sprinkler system designed in accordance with NBC
- Honeywell Fire Alarm System
- Addressable FAS to detect exact location of incident
- Dedicated Fire escape staircase
- All indoor Staircase are pressurized
- Pressurised Lifts linked to FAS Panel
- AMCA & EN 12101-3 certified Basement exhaust fans with class H insulation linked to smoke senors
- Fire Hydrants and Wet Hose at each floor
- 120 min CBRI approved Fire rated Doors at each floor
- Caryaire Motorised Dampers linked to FAS to close all air supply to the zone of incident
- Refuge Balcony at 5th & 9th Floor
Elevators
- 3 passenger lift (KONE)
- 1 service Lift (KONE)
- Passenger Lift 15 pax(1020kg) 1.75mps
- Service Lift 8 Pax (544kg) 1mps
- High End Interiors – Glass & SS
- Fitted with individual CCTV
- Synchronised to reduce wait time
- Control Panel with Braille buttons
- Lift announcement system provided
- Automatic Rescue Device installed to avoid trapping of people in case of power failure
- 169 Door sensors to avoid any mishap
- Strategic Spotting & parking at predefined floors
- 3-way inter communication with control room
Data & Communication Network
- Fibre-to-the-Floor (FTTF) Ready
- High Speed Internet services

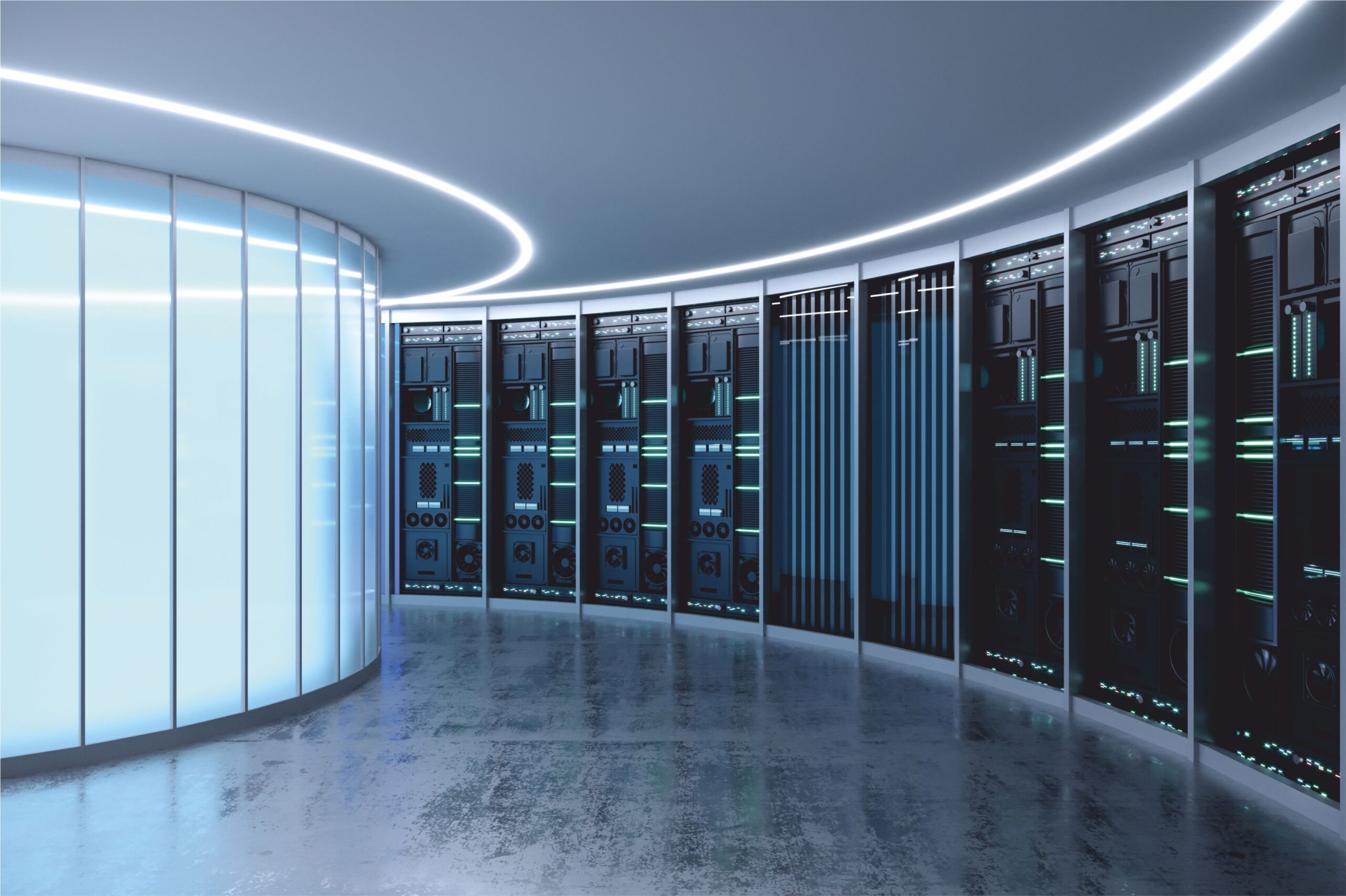

DATA CENTER
- Dedicated Lockable server to each Tenant
- 10 Lockable access controlled server racks
- UPS backup power
- Main power supply with auto failover feed from dual stack rising main
- DG backup with auto failover
- Separate Mesh Earthing
- Separate dual Redundant air conditioning
- Fiber network to all clients

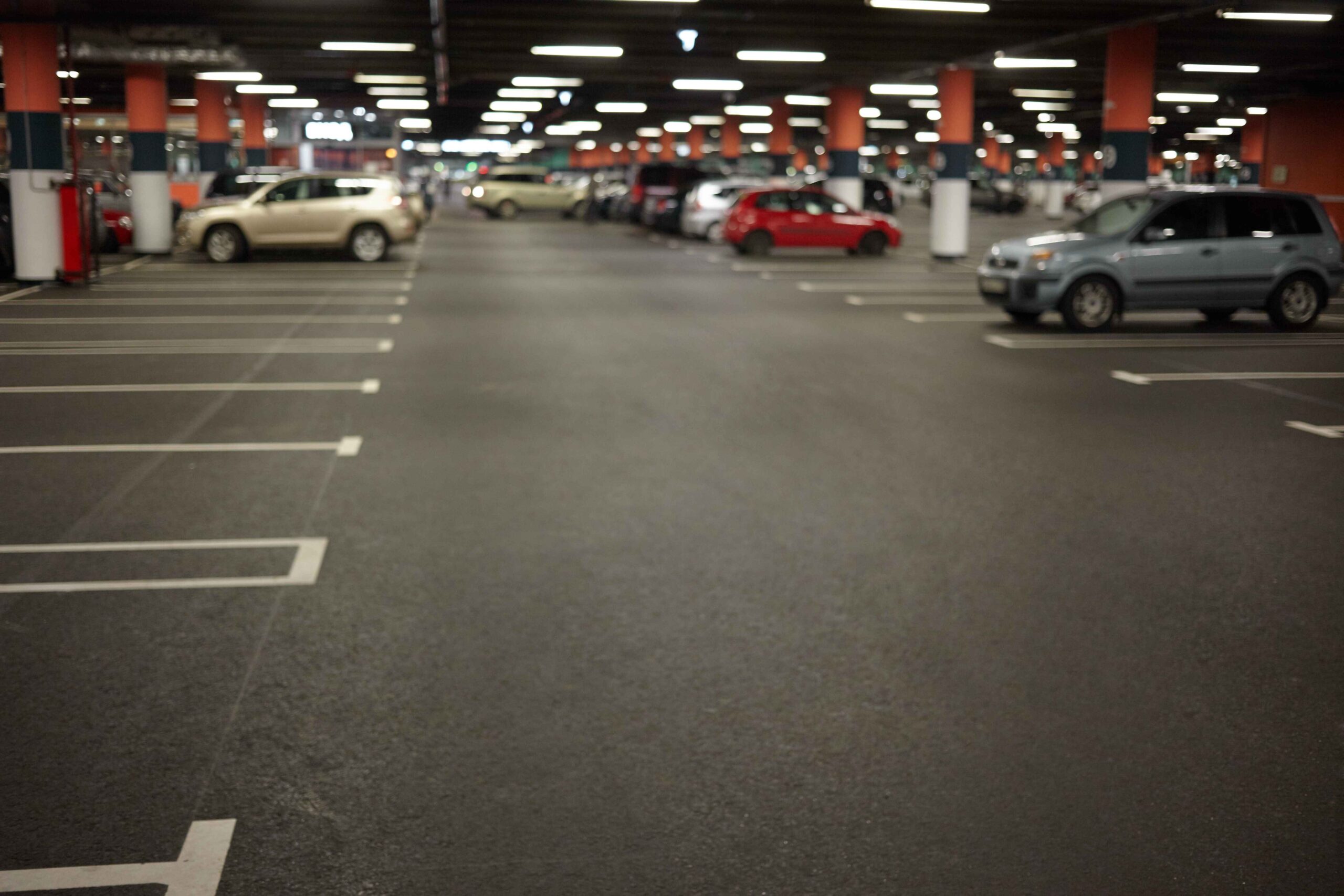

Parking Management System
- Web/App Based system
- ANPR based Car entry
- Card based 2-wheeler Entry
- Boom Barriers at Entry & exit
- Fixed Parking Spots per Tenant
- Real Time update of available spots
- Reserved Parking for Senior Managment
- Invitation based Visitor parking
- Complete record of vehicle management
- Block exit in case of default
Visitor Management System
- Web/ cloud based app
- QR code based automated entry
- Schedule pre-fixed appointment
- Scheduled visitors to get QR code on SMS
- Walk in visitors are registered
- Tenant receives Accept/Deny over SMS/Email
- Complete log of Visitor History
Security
- Multi Tier Security
- CCTV Surveillance throughout common areas
and basement - Card-controlled flap barriers at entrance & basement
- ANPR based authorized car entry
- X- ray baggae Scanners
- Door Frame Metal Detectors.
Surveillance
- Manned Patrolling
- PAS for emergency Announcement
- 24×7 Central Surveillance
- Control room monitors all
CCTV camera on video wall with auto alarm
generation, incident reporting, investigation, action & closure managed through security software
Tenant Billing
- Automated monthly billing
Separate Electric Billing as per Consumption - BTU based chilled water billing
- Online Payment options
A Future-Ready Commercial Asset
ESG-aligned infrastructure
Pollution-resilient design
Performance-driven engineering
Premium tenant positioning
Long-term asset durability
GRIP Biosphere is engineered not only for occupancy — but for enduring value.
